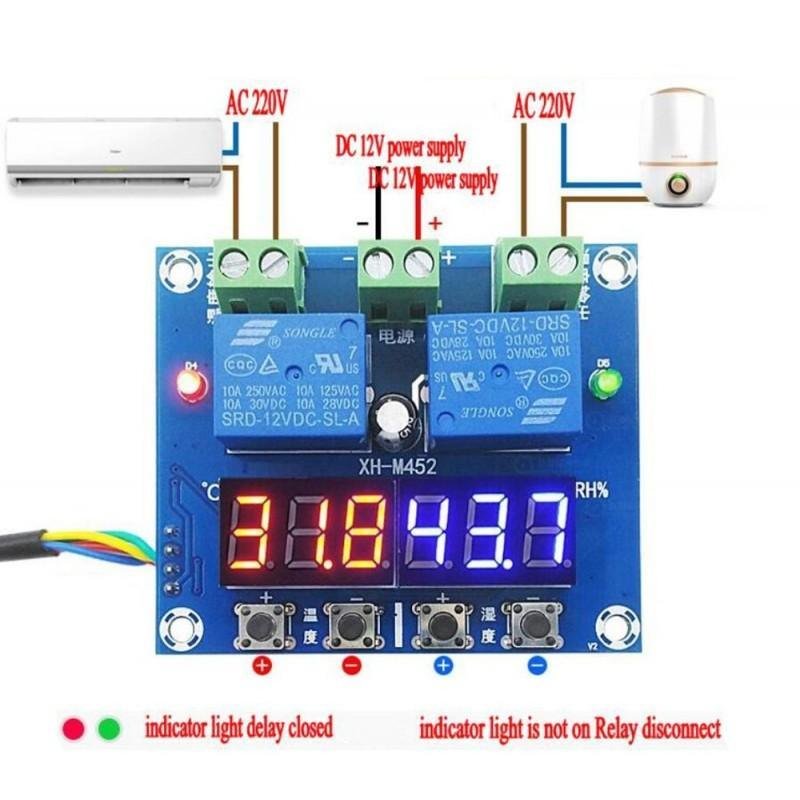

XH-M452 Temperature and Humidity Controller Module

Description

Spec
Model: XH-M452
Input voltage: DC 12V
Temperature range: -20~60Celsius
Humidity range: 00%-100%RH
Detection accuracy: 0.1Celsius 0.1%RH
Detection accuracy: 0.1Celsius
Sensor length: 100mm
Output Type: Relay Output(Switch Output) 10A/250VAC <-> 10A/30VDC
Dimensions: 65 X 55 X 28mm

Settings

Temperature Control

1. Set Start Temperature: Long press ‘Temperature +’ to set start temperature by key ‘Temperature +’ and ‘Temperature -’ and the display will flash. It will save automatically after 5 seconds and then display the current actual temperature.
2. Set Stop Temperature: Long press ‘Temperature -’ to set stop temperature by key ‘Temperature +’ and ‘Temperature -’ and the display will flash. It will save automatically after 5 seconds and then display the current actual temperature.

Humidity Control

1. Set Start Humidity: Long press ‘Humidity+’ to set start humidity by key ‘Humidity+’ and ‘Humidity-’ and the display will flash. It will save automatically after 5 seconds and then display the current actual humidity.
2. Set Stop Humidity: Long press ‘Humidity-’ to set stop humidity by key ‘Humidity+’ and ‘Humidity-’ and the display will flash. It will save automatically after 5 seconds and then display the current actual humidity.
