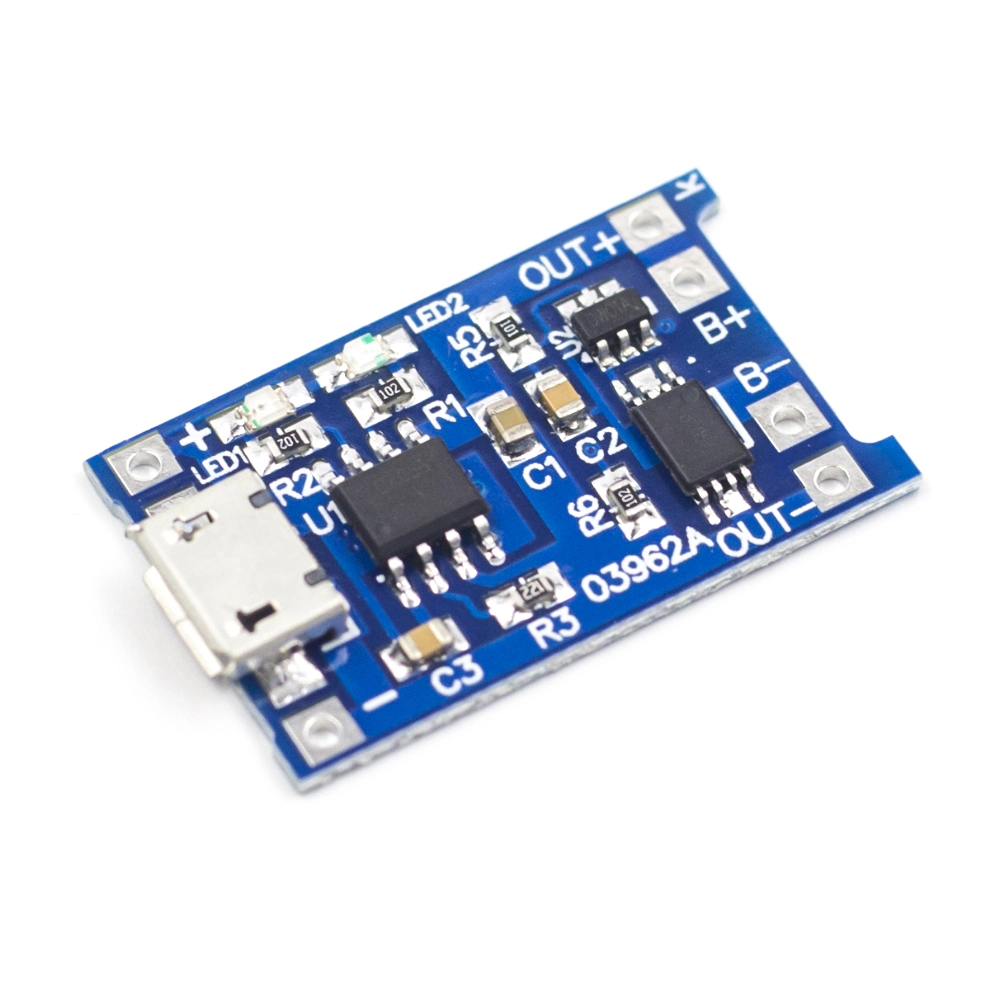

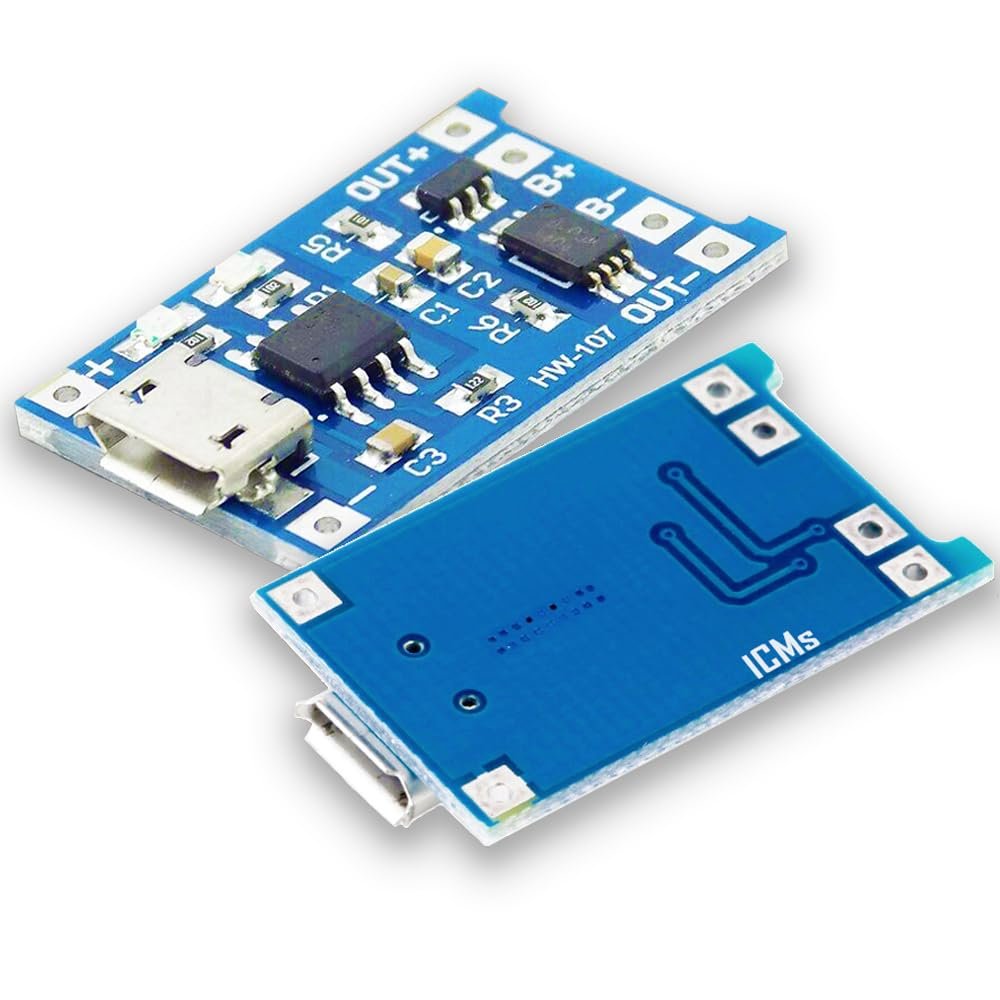

TP4056 with Micro USB Module 1A Li-Ion 18650 Battery Charging Board with Current Protection 5V 1A

Description

1. Charging indicator: RED LED charging, BLUE LED full Charged
2. Charge Current: 1A (default), modify the onboard resistor to adjust the charging current according to the table below.
3. Use mature charging chip TP4056 for simple peripheral circuits, good protection performance, and high charging accuracy.

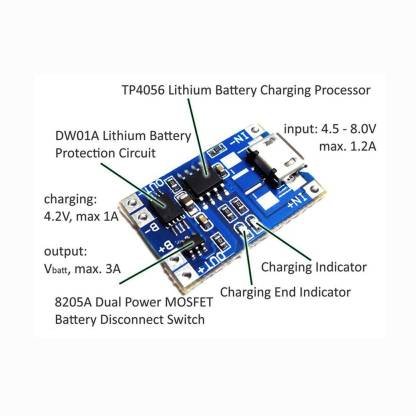

4. Connections with battery and input supply is mentioned in below image.


Charging current can be adjusted by just changing the circuit board’s fixed resistors. It can change the output to the 100mA-1000mA, very conveniently (refer pdf linked below).

Package Includes :

1 x TP4056 1A Li-Ion Lithium Battery Charging Module – Micro B USB

Make a 3.7 V Li – ion Battery Charger using TP-4056
