SIM800L – Quad-band GSM/GPRS Module

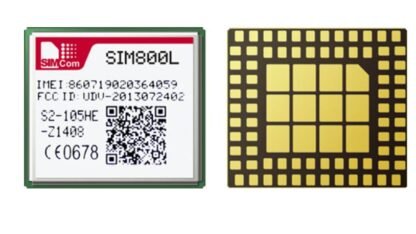

Quad-Band GSM/GPRS module in an LGA Package

SIM800L is a quad-band GSM/GPRS module, that works on frequencies GSM850MHz, EGSM900MHz, DCS1800MHz and PCS1900MHz. SIM800L features GPRS multi-slot class 12/ class 10 (optional) and supports the GPRS coding schemes CS-1, CS-2, CS-3 and CS-4. With a tiny configuration of 17.8*15.8*2.4mm, SIM800L can meet almost all the space requirements in customer applications, such as smart phone, PDA and other mobile devices.
The SIM800L is a powerful and cost-effective GSM module that is widely used in a variety of applications. This quad-band GSM/GPRS module is designed to work on the four global GSM frequency bands (850/900/1800/1900MHz), making it compatible with most cellular networks around the world. The SIM800L module is a reliable and efficient solution for adding cellular connectivity to devices such as IoT devices, alarms, remote controls, and more. The SIM800L GSM module is small in size, low in power consumption and easy to integrate into any system with its UART and ADC interfaces. It also supports GPRS class 10, making it an ideal choice for applications that require internet connectivity. The SIM800L GSM module is a must-have for any project or device that requires wireless communication capabilities.

Resources: Datasheet
