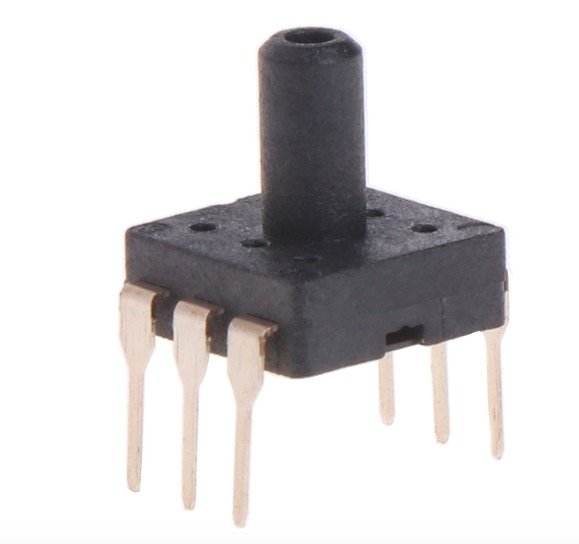

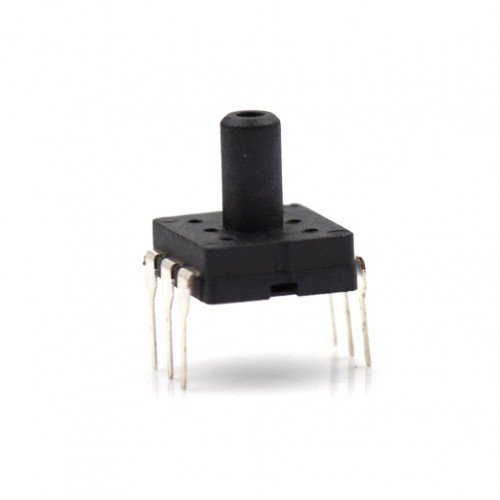

Pressure Sensor MPS20N0040D Air Pressure Sensor 40KPa Differential Pressure

112.10 Inc. GST

13 in stock

SKU: R13B01S02 Categories: , ,

Description

Pressure range :0-5 .8 psi (40kpa); 40kpa (differential pressure)
Output: mV signal
Electricity supply: 5VDC or constant current 1Ma
Linear accuracy: 0.25% FS
Measure the pressure range of 580 PSIG, 40KPaG
Max pressure capacity of three times the measuring range
Work power supply 5 VDC,
Input impedance of 4 – 6 KΩ
The output impedance of 4 – 6 KΩ
Operating temperature -40 – 85 ° C -40 ° F – +185 ° F
