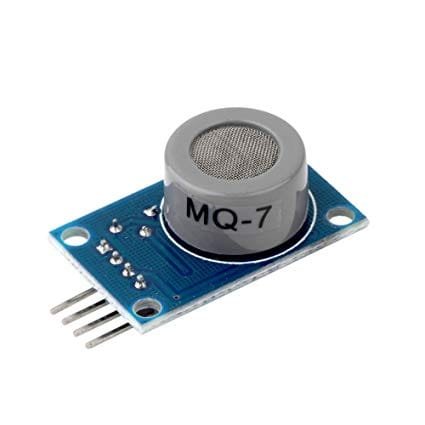

Name: MQ7 CO Carbon Monoxide Coal Gas Sensor Module
SKU: R11B10S06
Price: 87.80 INR
Availability: InStock

MQ7 CO Carbon Monoxide Coal Gas Sensor Module

₹103.60 Inc. GST

APPLICATION
They are used in gas detecting equipment for carbon monoxide(CO) in family and
industry or car.
SPECIFICATIONS
A. Standard work condition Symbol Parameter name Technical condition Remark
Vc circuit voltage 5V±0.1 Ac or Dc
VH (H) Heating voltage (high) 5V±0.1 Ac or Dc
VH (L) Heating voltage (low) 1.4V±0.1 Ac or Dc
RL Load resistance Can adjust
RH Heating resistance 33Ω±5% Room temperature
TH (H) Heating time (high) 60±1 seconds
TH (L) Heating time (low) 90±1 seconds
PH Heating consumption About 350mW

3 in stock

SKU: R11B10S06 Categories: All products, Sensors

Description

Power: 2.5V ~ 5.0V
Dimension: 40.0mm * 21.0mm
Mounting holes size: 2.0mm
https://www.sparkfun.com/datasheets/Sensors/Biometric/MQ-7.pdf
TECHNICAL DATA MQ-7 GAS SENSOR
FEATURES
* High sensitivity to carbon monoxide
* Stable and long life

Additional information

Weight	05 g
Dimensions	036 × 019 × 015 mm
