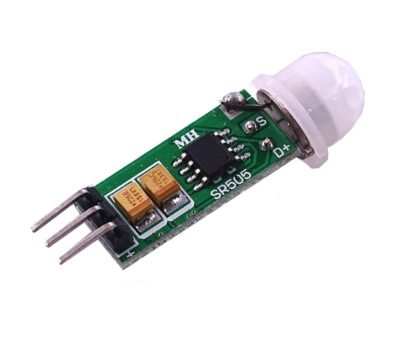

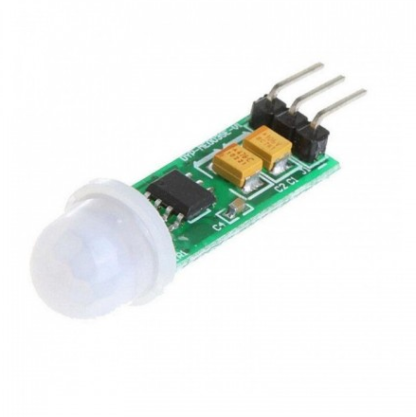

HC-SR505 Mini Infrared PIR Motion Sensor Infrared Detector Module

₹94.71 Inc. GST

  • Model: HC-SR505
  • Operating Voltage Range: DC4.5-20V
  • Average Current Consumption (mA): 0.06
  • Distance Measuring Range: 3 meters
  • Dimensions (mm) LxWxH: 10 x 23 x 5
  • Weight (gm): 10
  • Delay time: Default 8S + -30% (can be customized)
  • Working Temperature Range: -20°C ~ 80°C
  • Sensor Lens Diameter: 10mm
  • Induction angle: <100-degree cone angle

2 in stock

SKU: R45B12 Categories: , Tags: , ,

Additional information

Weight07 g
Dimensions032 × 024 × 025 mm
