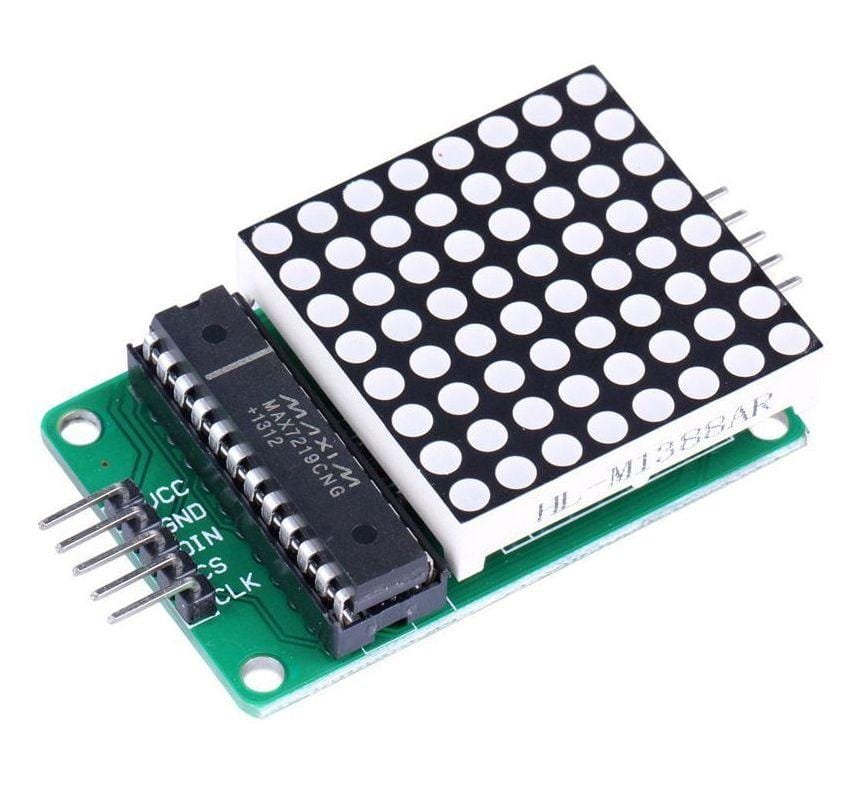

MAX7219 Dot Led Matrix Module MCU Control LED Display Module 8×8 led display

150.80 Inc. GST

  1. Driver Chip: MAX7219
  2. Input Voltage: 3.7 to 5.3 V
  3. Input Current: 320 mA
  4. Display Dimensions: 32x32x6 (LxWxH) mm
  5. PCD Dimensions: 50×32 (LxW) mm

Out of stock

Description

This is Dot Led Matrix Module incorporating MAX7219 Driver chip. By using this dot LED module in your upcoming project,  you will be able to add some great cool animation.

The individual module features 8×8 LEDs, each controlled very precisely by the MAX7219 driver to generate the color pattern you wish. The great advantage of using this is users will have control over all of the 64 LED by just connecting 3 output communication wires to microcontrollers like Arduino etc.

Connecting the two modules is also very easy. Only connect the output pins of the previous breakout board to the input pins of the new module, thus with such arrangement, you can connect as many DOT LED Modules to the Arduino as you wish!!! Great……

The MAX7219 Dot Led Matrix Module is a serial input common-cathode driver that interfaces micro-controllers to LED matrices. All common micro-controllers can be connected to this module by using a 4-wire serial interface. Each output can be addressed without refreshing the entire display. This module requires only 3 I/O lines for driving the display, making it ideal for your microcontroller projects. Only one external register is used to set the segment current of each LED.

Pin Connection

Dot LED Module to the Arduino
Vcc      –     5V
GND   –    GND
DIN    –    Pin 12
CS       –    Pin 10
CLK    –    Pin 11

We have cascaded(4 in 1) MAX7219 Dot Led Matrix Module available on our site do not forget to check it too, MAX7219 Dot Matrix 4 In 1 Display with 5P Line Module

Features :

  1. Requires only 3 communication wires of MCU
  2. Cascading multiple Matrix LED Module is very easy
  3. Size of the display is very compact
  4. The PCB features M3 holes for mounting.

Package Includes :
1 x Dot LED Matrix Module
1 x Connecting Wire

Tutorial :

How to use DOT LED Matrix Module with Arduino

Specification:

  • A single module can drive an 8×8 dot matrix common cathode Operating Voltage: 5V
  • Dimensions: 12.8X12.8X1.3cm Fixing screws with 64 holes with a diameter of 3mm
  • Module with input and output interfaces, support for cascading multiple modules Quality:1Set
  • The left side of the module to the input port, the right to an output port When the control of a single module, simply input port connected to CPU When a plurality of cascaded modules, input and output termination CPU, an input terminal of the second output end of the first module a module, the first two modules of the input terminal of the three termination modules, and so on… 51 microcontrollers, for example, VCC 5V GND GND DIN P2.2 CS P2.1 CLK P2.0

There are several MAX7219 breakout boards available, two of which are more popular – one is the generic module and the other is the FC-16 module.

Specification

Weight16 g
Dimensions066 × 032 × 014 mm
