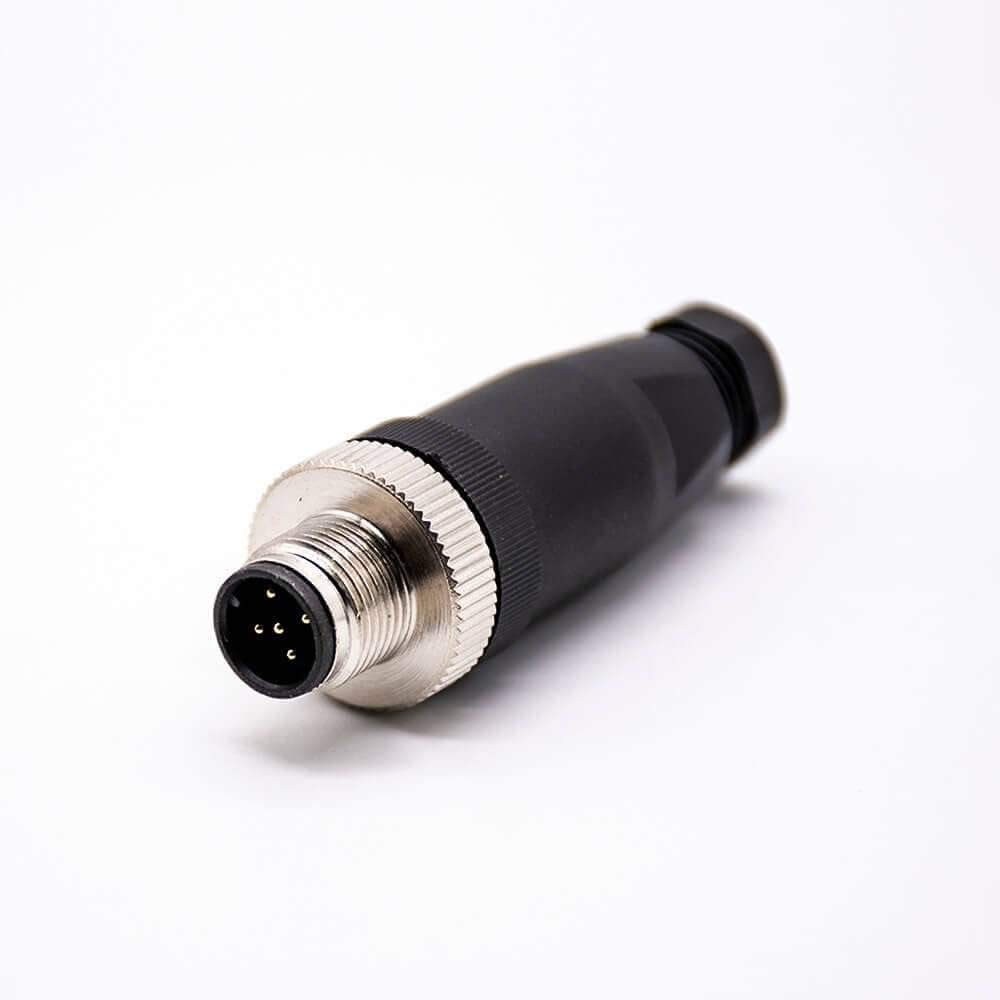

M12 5 Pin Male Connector Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Socket, Female, IP67 (Copy)

Description

Number Of Contacts   5
Mounting Type Cable Mount
Connector Size  M12
Plug/Socket  Socket
Contact Gender  Male
Termination Method Screw
IP Rating  IP67
Current Rating  4.0A
Series T411
Body Orientation  Straight
Voltage Rating  125.0 V
Coding  B
Mating Type  Threaded
Shell Size  20
Housing Material  Nylon
Pole Format  5P
Contact Plating  Gold
Minimum Operating Temperature  -40°C
Maximum Operating Temperature  +85°C
Contact Material  Bronze
Country of Origin  China

IP67 ingress protection rating
• A code for DeviceNet, IO link and Profibus
• Straight or 90° cable entry
• Cable mount plugs and sockets in 3, 4 and 5 pole
• M12 x 1 mm thread
• Robust and compact design offering maximum performance
• Easy to assemble, no special tooling required
• Ideal for jumper cable assemblies
• 360° shielding versions for enhanced performance
• PG7 gland = 4-6 mm cable acceptance
• PG9 gland = 6-8 mm cable acceptance

Applications
The M12 Euro-style connectors are ideally suited to commercial and industrial applications. The connectors are traditionally used when connecting to sensors, actuators valves, and cylinders. Some of the most common areas are
