LM35 Temperature Sensor

Description

Features:

1. Calibrated directly in Degree Celsius (Centigrade)
2. Linear at 10.0 mV/°C scale factor
3. 0.5°C accuracy guarantee-able (at 25°C)
4. Rated for full -55°C to a 150°C range
5. Suitable for remote applications
6. Low cost due to wafer-level trimming
7. Operates from 4 to 30 volts
8. Less than 60 mA current drain
9. Low self-heating, 0.08°C in still air
10. Non-linearity only 0.25°C typical
11. Low impedance output, 0.1Ωfor 1 mA load

Package Includes:

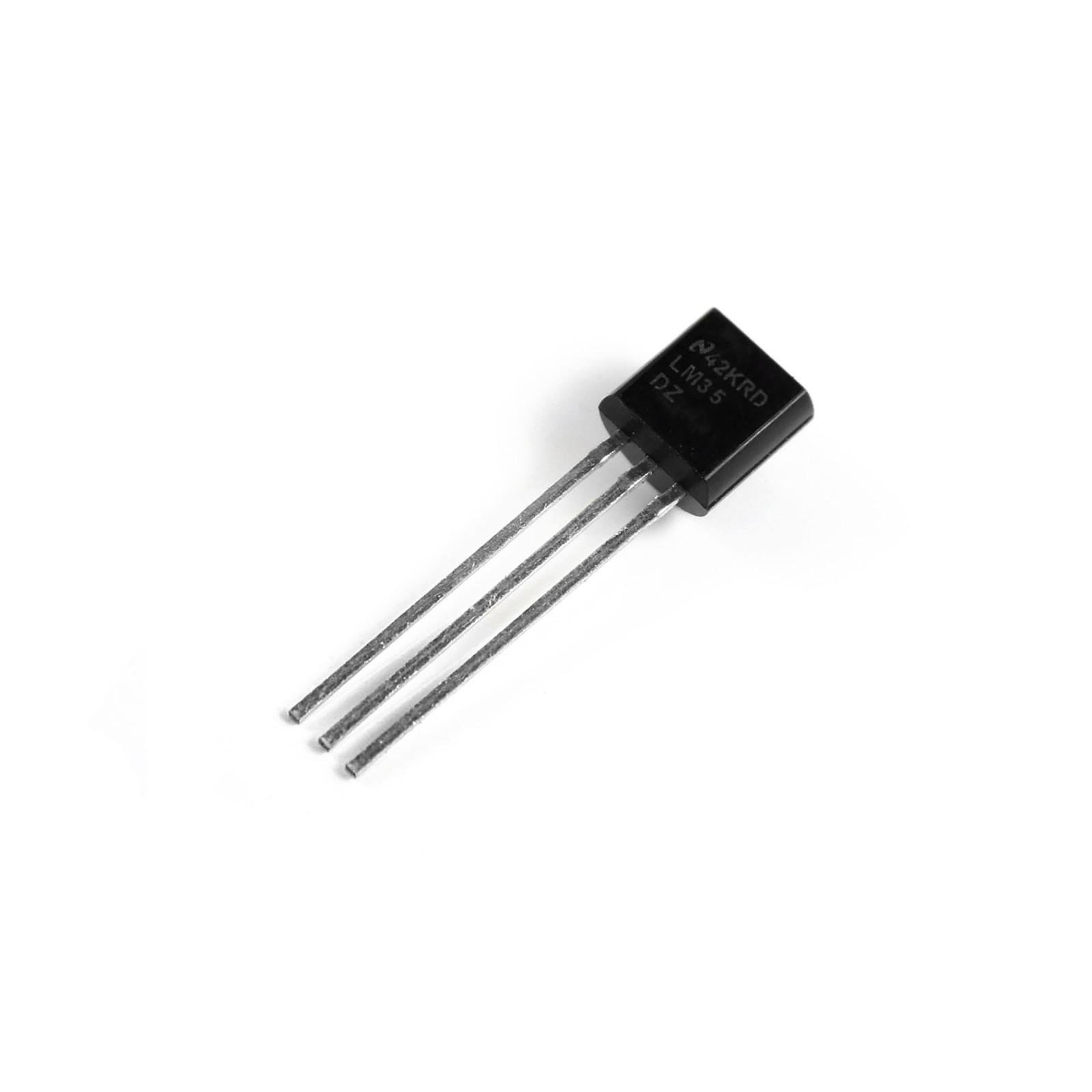

1 x LM35 TO-92-3 Board Mount Temperature Sensors.
