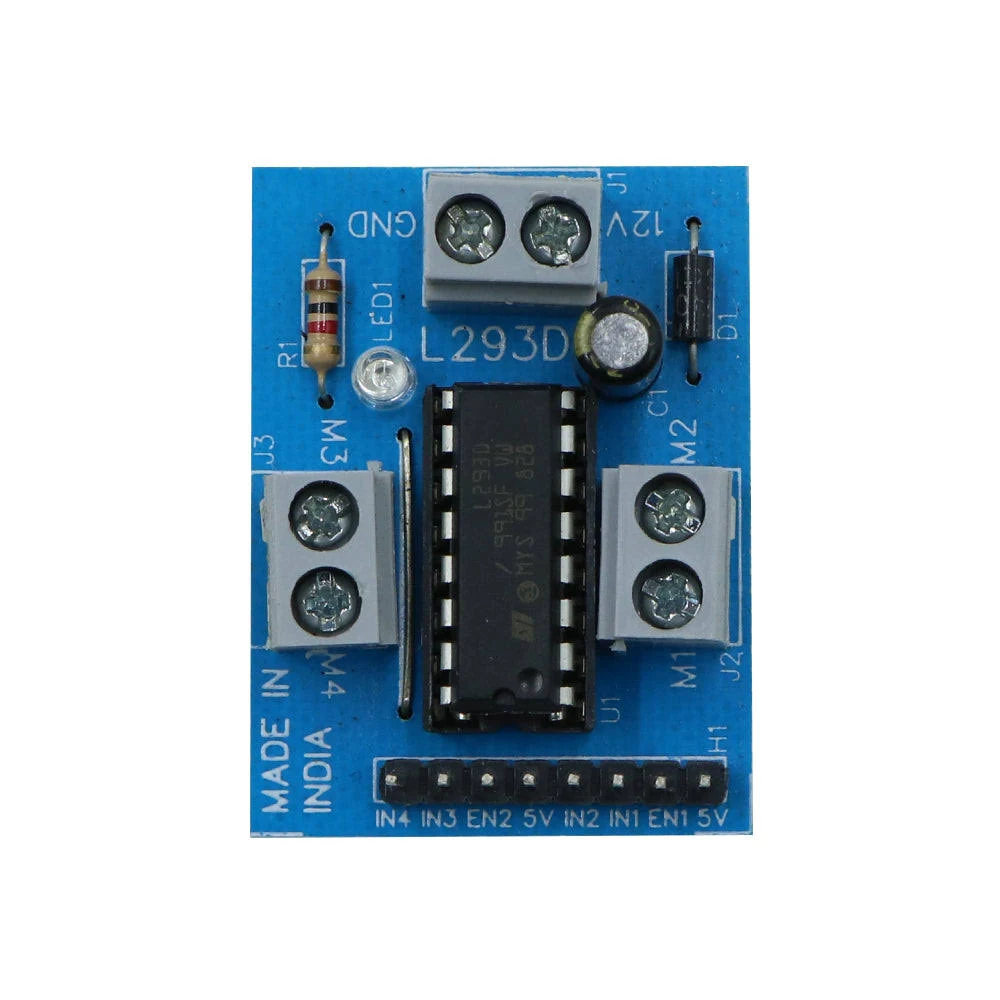

L293D Motor Driver Module 1Amp

Description

Features:

• Compact size
• Wide Supply-Voltage Range: 5 V to 18 V for motor supply (safe Limit 5v to 12v for continuous operation).
• On-board voltage regulator IC to provide 5v to L293D. No need to provide extra 5v supply.
• Extra 5v and GND pins for supplying power to controllers and sensors.
• Enable pins taken out to control speed using single PWM pin.
• Output current 600mA per channel.
• Peak output current 1.2A per channel.
• Power Led to indicate the power status.
• Capacitors to rectify Back EMF from motors.
• Two motors connection in one module
• Two-screw pin terminals for motors
•  Male headers for direct connection of the motor.

Download L293D Motor Driver Manual
