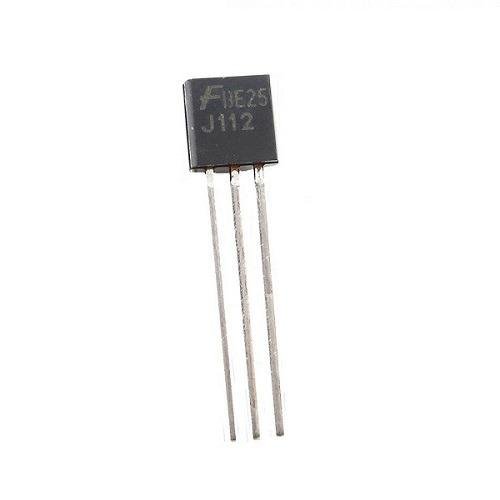

Description
| Specifications | Value |
|---|---|
| Channel Type | N |
| Idss Drain-Source Cut-off Current | Min. 5mA |
| Maximum Gate Source Voltage | -35 V |
| Maximum Drain Gate Voltage | 35V |
| Configuration | Single |
| Transistor Configuration | Single |
| Maximum Drain Source Resistance | 50 Ω |
| Mounting Type | Through Hole |
| Package Type | TO-92 |
| Pin Count | 3 |
| Drain Gate On-Capacitance | 28pF |
| Source Gate On-Capacitance | 28pF |
| Dimensions | 5.2 x 4.19 x 5.33mm |
| Height | 5.33mm |
| Width | 4.19mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 5.2mm |
