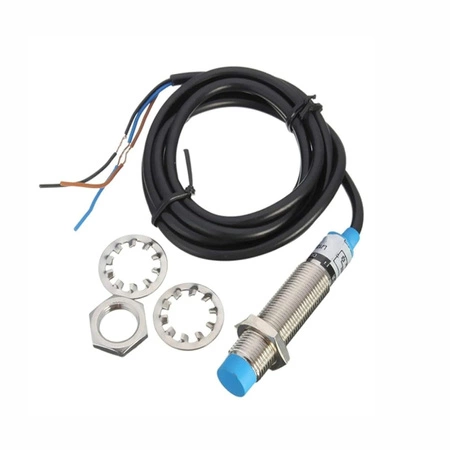

Inductive Proximity Sensor Lj12A3-4-Z/BX NPN Switch DC 6-36 Volt

155.00 Inc. GST

Inductive proximity sensor normally open, operating in the voltage range from 6V to 36V, capable of metal objects.

4 in stock

SKU: R48B20 Category:

Description

Built-in LED diode indicating operation.

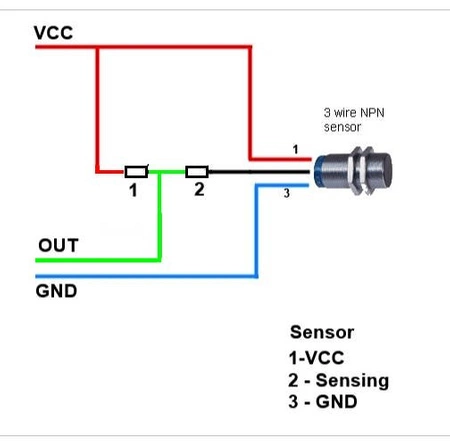

NPN – means that the sensor sets a low state on the signal wire after detecting an object

Specification:

  • supply voltage from 6V to 36V
  • type: NPN NO-Normally Open
  • detection distance: 3.6mm +/-10%
  • maximum control current 300mA
  • operating temperature from -30°C to +60°C
  • dimensions M12 x 60 mm long
  • 1m cable
