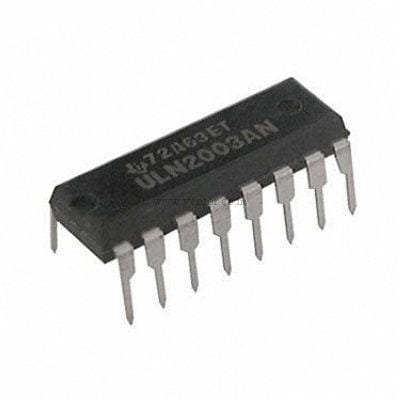

IC ULN2003 – Seven Darlington Arrays

Description

Features:

• PDIP-16 package
• 500-mA-Rated Collector Current (Single
• Output)
• High-Voltage Outputs: 50 V
• Output Clamp Diodes
• Inputs Compatible With Various Types of logic
• Relay-Driver Applications

Applications:

• Relay Drivers
• Stepper and DC Brushed Motor Drivers
• Lamp Drivers
• Display Drivers(LED and Gas Discharge)
• Line Drivers
• Logic Buffers

Package includes:

• 1 x ULN2003A Darlington Array IC
