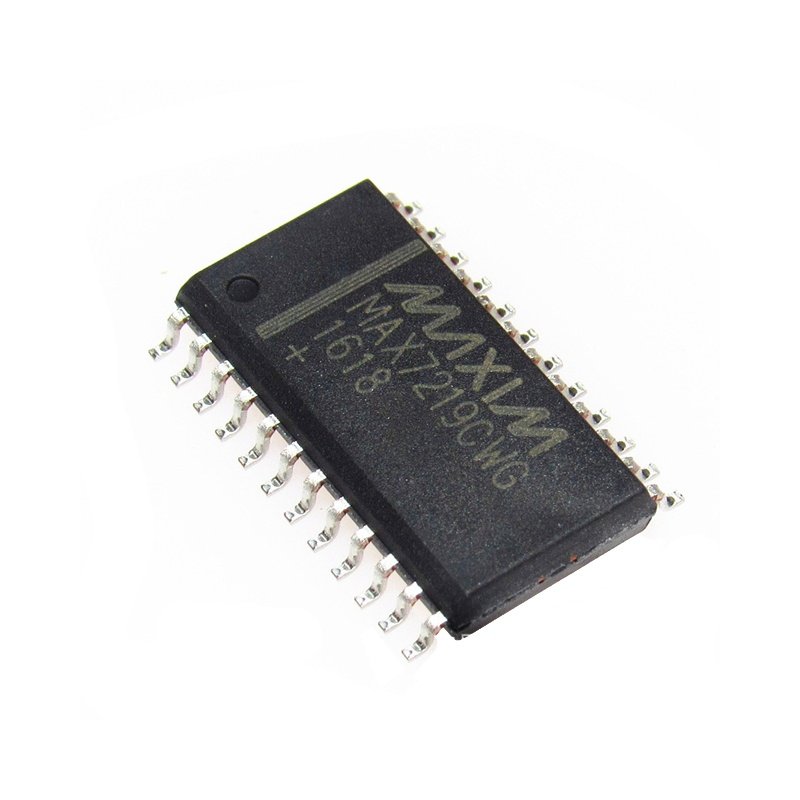

IC MAX7219 Serially Interfaced, 8-Digit LED Display Drivers Pkg SOIC24 SMD IC

Description

The MAX7219/MAX7221 are compact, serial input/output common-cathode display drivers that interface microprocessors (μPs) to 7-segment numeric LED displays of up to 8 digits, bar-graph displays, or 64 individual LEDs.

Features
● 10MHz Serial Interface
● Individual LED Segment Control
● Decode/No-Decode Digit Selection
● 150μA Low-Power Shutdown (Data Retained)
● Digital and Analog Brightness Control
● Display Blanked on Power-Up
● Drive Common-Cathode LED Display
● Slew-Rate Limited Segment Drivers
for Lower EMI (MAX7221)
● SPI, QSPI, MICROWIRE Serial Interface (MAX7221)
● 24-Pin DIP and SO Packages

Download Datasheet MAX7219_makestore
