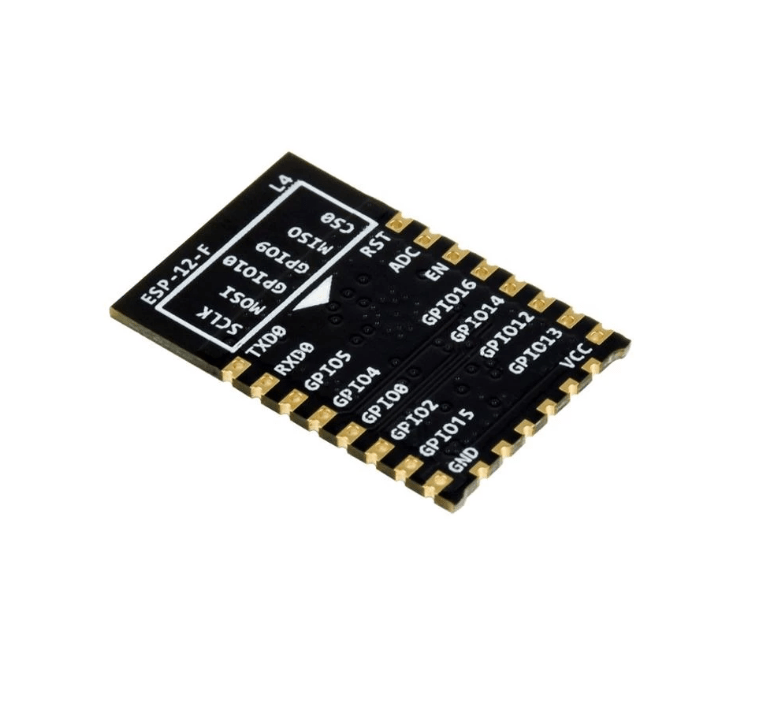

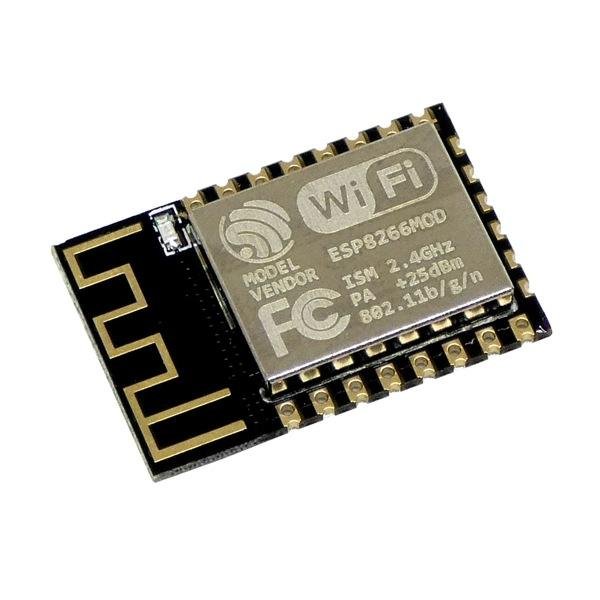

ESP8266 12E Serial Port WIFI Wireless Transceiver Module Arduino Compatible
ESP8266 12E Serial Port WIFI Wireless Transceiver Module Arduino Compatible - Image 2

ESP8266 12E Serial Port WIFI Wireless Transceiver Module Arduino Compatible

₹149.02 Inc. GST

Features of ESP-12E ESP8266 Wifi Module:

  • 802.11 b/g/n
  • Integrated low power 32bit MCU
  • Integrated 10bit ADC
  • Integrated TCP/IP protocol stack
  • Operating temperature range : -40 ° C ~ 125 ° C
  • Frequency range : 2.4GHz – 2.5GHZ
  • Operating voltage: 3.0v~3.6v
  • Operating current: Average value 80mA
  • Integrated TR switch, balun, LNA, power amplifier and matching network
  • Integrated PLL, regulators, and power management units
  • Supports antenna diversity
  • WiFi 2.4 GHz, support WPA/WPA2 Security
  • Network protocol : IPv4, TCP/UDP/HTTP/FTP
  • SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIO
  • STBC, 1×1 MIMO, 2×1 MIMO
  • A-MPDU & A-MSDU aggregation and 0.4s guard interval
  • Deep sleep power <10uA, Power down leakage current < 5uA
  • Wake up and transmit packets in < 2ms
  • Standby power consumption of < 1.0mW (DTIM3)
  • +20dBm output power in 802.11b mode

1 in stock

SKU: M11B02C07 Category: Tags: , , , ,

Description

The ESP8266 is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor. This module comes with AT commands firmware which allows you to get functionality like arduino wifi shield,

however you can load different firmwares to make your own applicaiton on the modules’ memory and processor.

Additional information

Weight2 g
Dimensions025 × 020 × 05 mm
