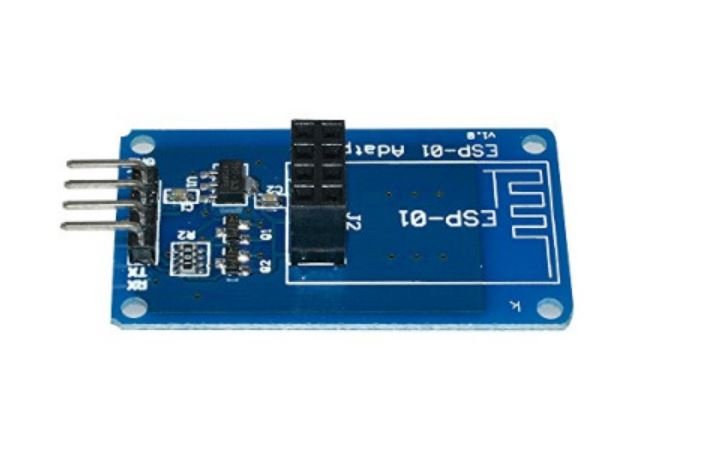

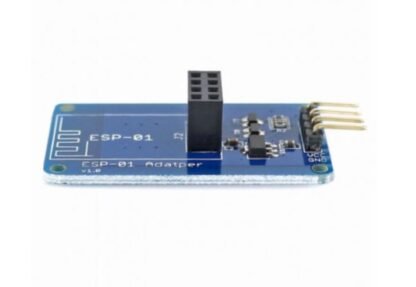

ESP-01 Adapter 3.3V 5V Board ESP01 Breakout Module

₹82.02 Inc. GST

  1. On-board level shift circuit
  2. Arduino UNO R3 and the compatible board can directly connect to this module;
  3. Interface logic voltage: 3.3V / 5V compatible(On-board level shift circuit);
  4. Working voltage: 4.5~5.5V (Onboard 3.3V LDO Regulator);
  5. Working current: 240mA(MAX)
  6. Working voltage (V)   4.5 ~ 5.5
  7. Working current (mA)  240
  8. Length (mm)  47.5
  9. Width (mm)   24
  10. Height (mm)  11.5
  11. Weight (gm)  4

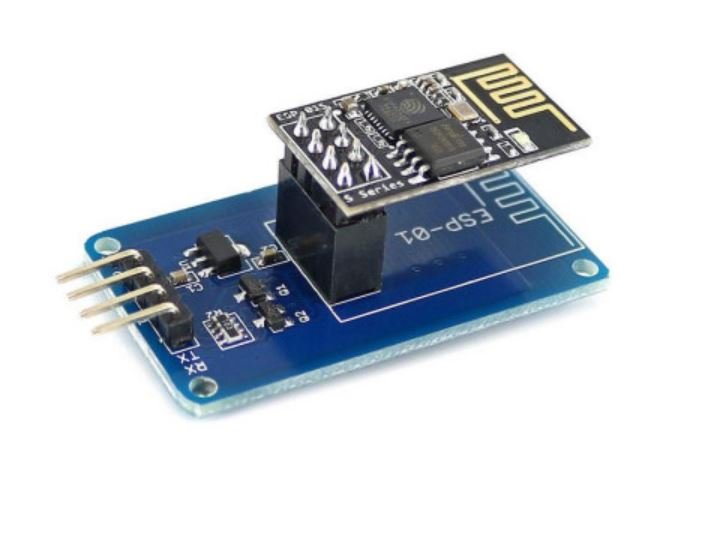

Note: ESP8266-01 Adapter Breakout board doesn’t include ESP8266-01 Module

20 in stock

SKU: R48B23 Categories: , ,

Description

An ESP-01 Adapter 3.3V 5V Board for ESP-01 Wi-Fi module voltage regulator circuit and onboard level conversion circuit can make 5V microcontroller easy to use with ESP-01 Wi-Fi module. Also, the item can be used with Arduino UNO R3 or a compatible board.
