Description

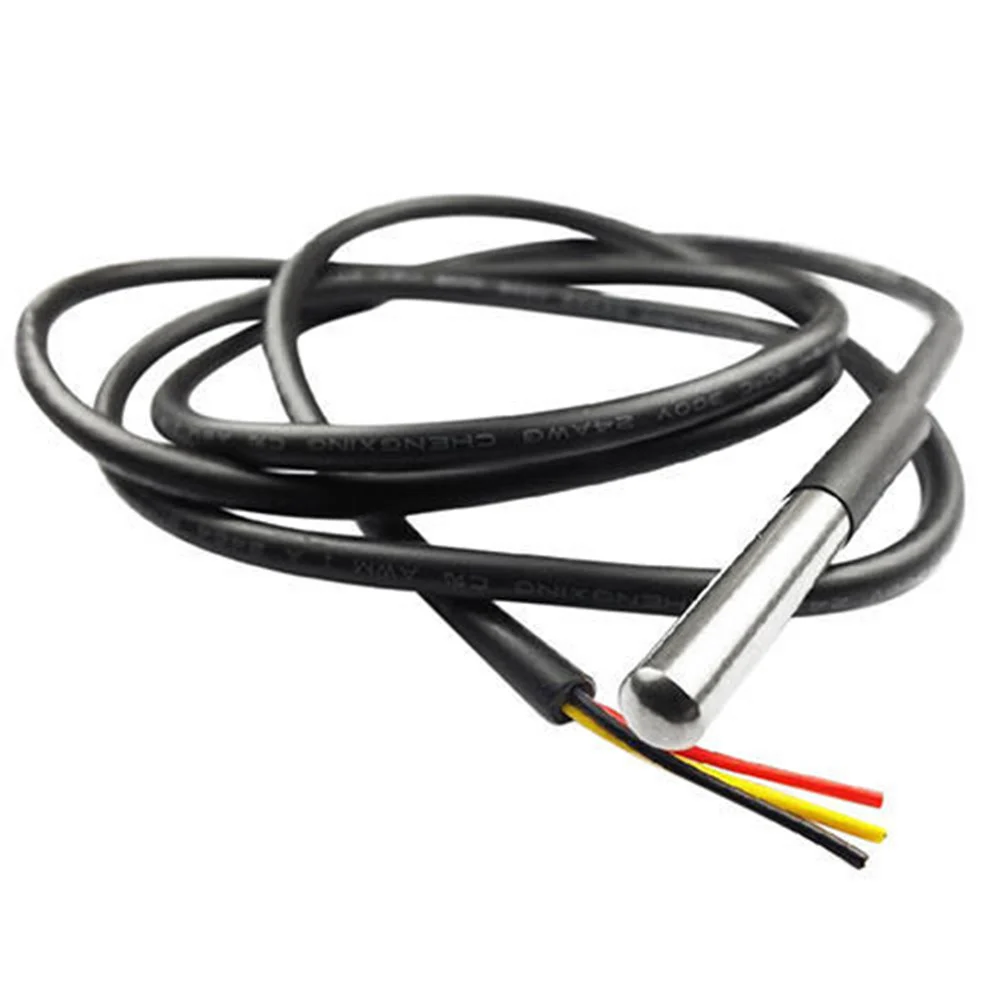

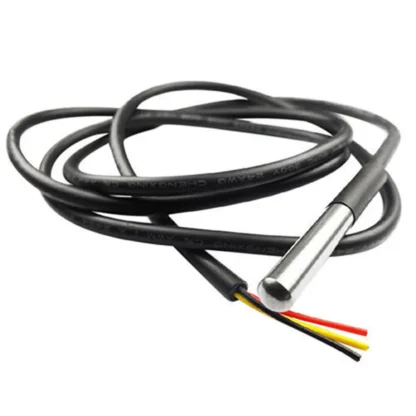

This is DS18B20 Water Proof Temperature Probe – Black (1m) Original Chip which is based on the DS18B20 sensor.
It is very handy when you need to measure something far away, or in wet conditions. Because they are digital, you don’t get any signal degradation even over long distances.
These 1-wire digital temperature sensors are fairly precise (±0.5°C over much of the range) and can give up to 12 bits of precision from the onboard digital-to-analog converter.
They work great with any microcontroller using a single digital pin, and you can even connect multiple ones to the same pin, each one has a unique 64-bit ID burned in at the factory to differentiate them. Usable with 3.0-5.0V systems. When using with a microcontroller put a 4.7k resistor to the sensing pin, which is required as a pull-up from the DATA to VCC line.
Wired connection
Red: VCC/VDD
Yellow/White: DATA
Black: GND
