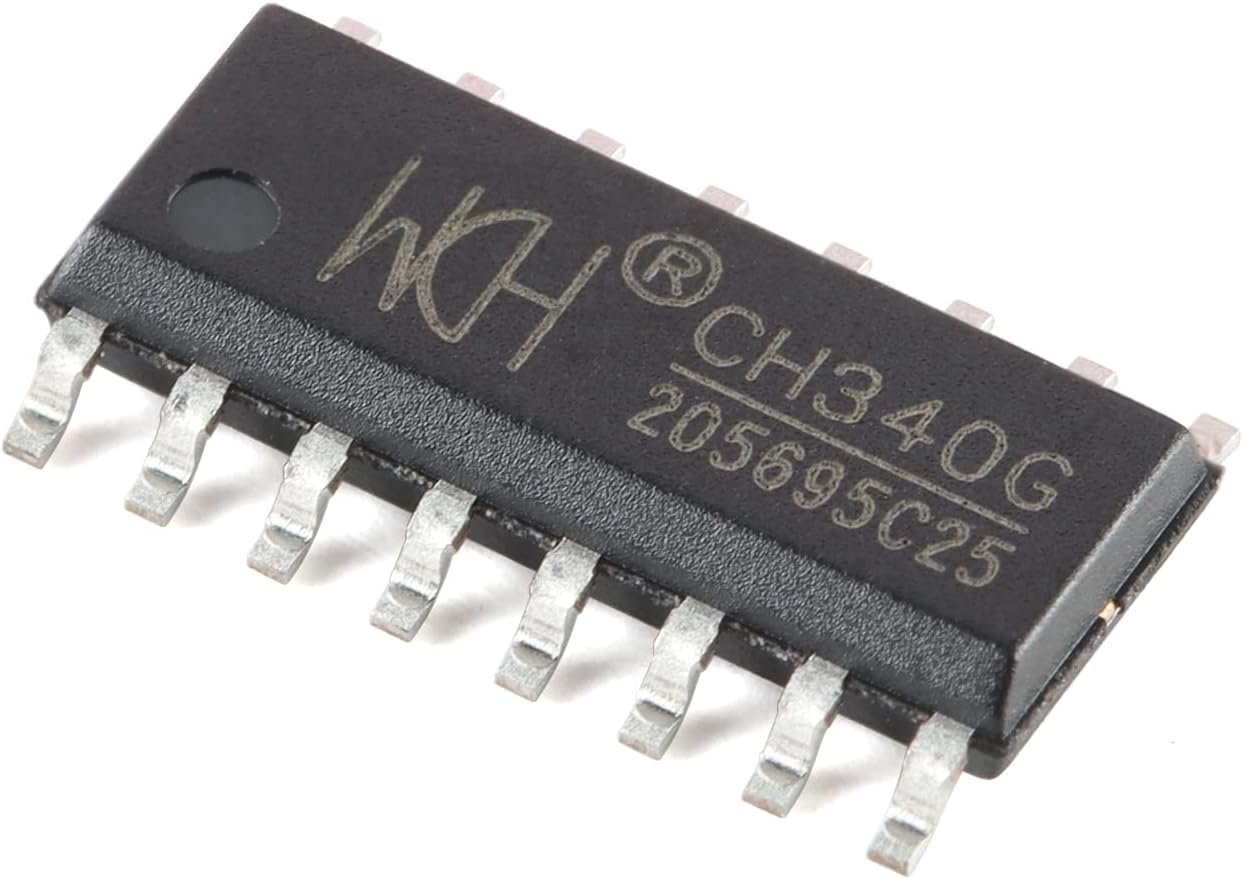

CH340G – 3.3/5V USB2 to UART Serial Converter SMD IC 16-Pin SOP

CH340 is a USB converter chip, which converts USB to serial UART interface or to printer interface. In UART mode, CH340 provides common MODEM interface signals, to expand UART interface of computer or upgrade common serial communication devices to USB directly.

• Full speed USB device interface, USB 2.0 compatible.
• Emulate standard UART interface, used to upgrade the original serial devices or expand additional UART via USB.
• Original UART applications are totally compatible without any modification.
• Hardware full duplex serial UART interface, integrated transmit-receive buffer, supports communication baudrates varies from 50bps to 2Mbps.
• Supports common MODEM interface signals RTS, DTR, DCD, RI, DSR and CTS.
• Provides further RS232, RS485, RS422 interface, etc. through external voltage conversion chip.
• Supports 5V and 3.3V power supply even supports as low as 3V.
• CH340C/N/K/E and CH340B integrate 12MHz clock, no external crystal required, CH340B also integrates EEPROM used to configure the serial number, etc.How to Install: Video
  Resources:Datasheet
