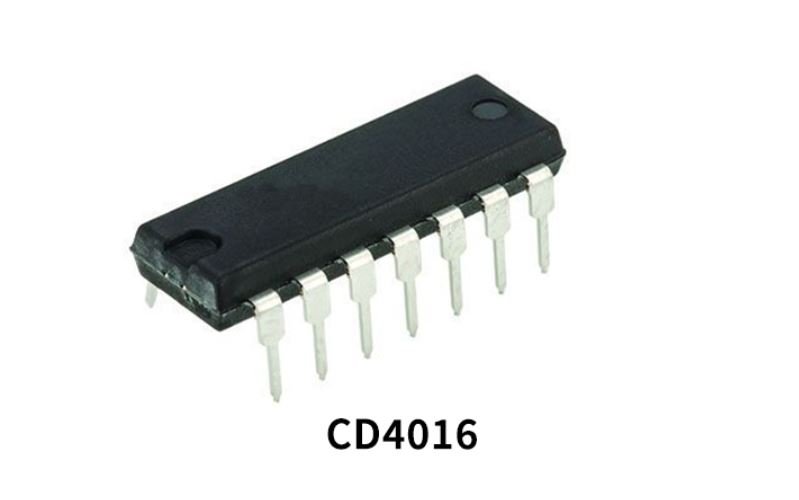

CD4016BE Quad Bilateral Switch IC DIP HLF Make

• Wide supply voltage range: 3V to 15V
• Wide range of digital and analog switching: ±7.5 VPEAK
• “ON” resistance for 15V operation: 400Ω (typ.)
• Matched “ON” resistance over 15V signal input: ∆RON = 10Ω (typ.)
• High degree of linearity: 0.4% distortion (typ.) @ fIS = 1 kHz, VIS = 5 Vp-p, VDD−VSS = 10V, RL = 10 kΩ
• Extremely low “OFF” switch leakage: 0.1 nA (typ.) @ VDD − VSS = 10V TA = 25°C

Application:

• Analog signal switching/multiplexing
  • Signal gating
  • Squelch control
  • Chopper
  • Modulator/Demodulator
  • Commutating switch
• Digital signal switching/multiplexing
  • CMOS logic implementation
  • Analog-to-digital/digital-to-analog conversion
  • Digital control of frequency, impedance, phase, and analog-signal gain
