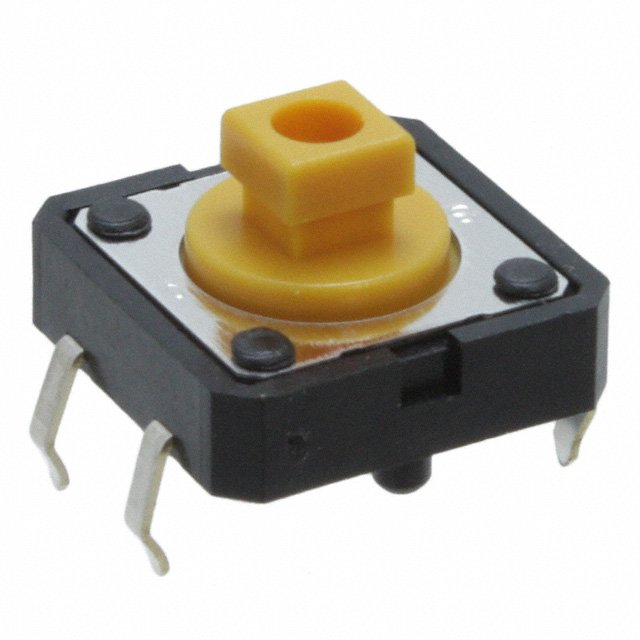

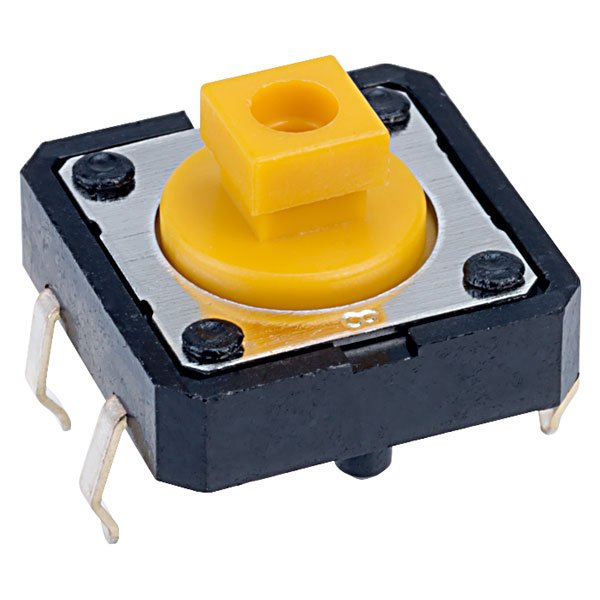

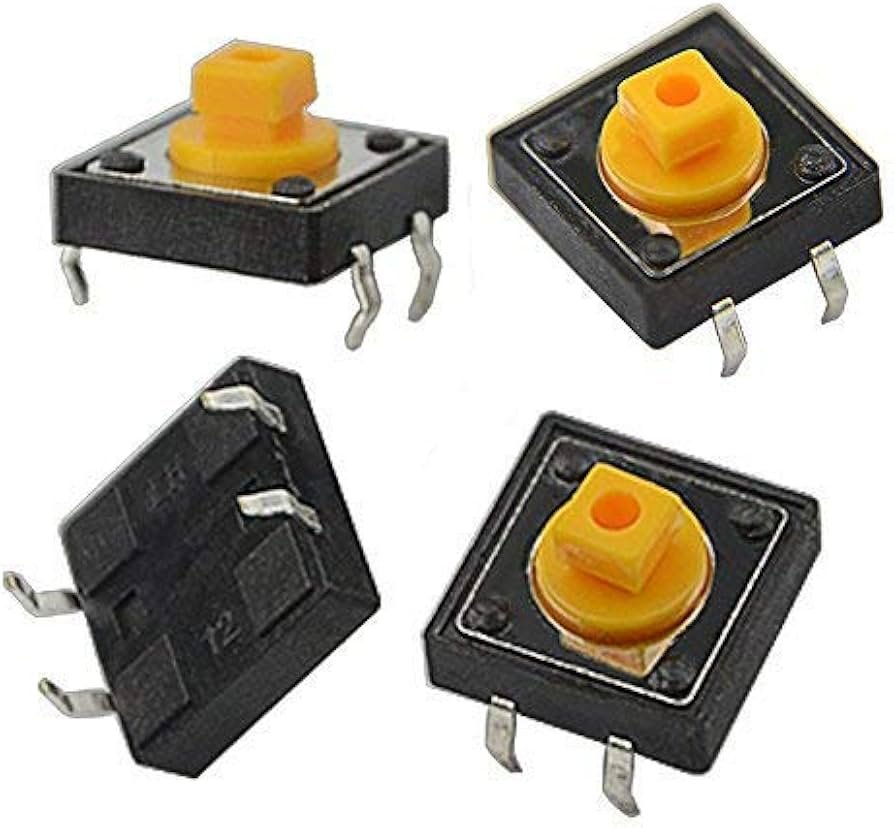

B3F-4055 Micro Momentary Tactile Push Button Switch without Keycap 12x12x7.3mm Omron make

Description

Omron B3F-4055 Tactile Push Button Switch-12x12x7.3mm, Tactile Push Button Switch is widely used as a standard input “button” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.

• Mounting Type: Through-hole
• Contact Material: Aluminum alloy
• Contact Resistance: 100mΩ
• Insulation Resistance: 100MΩ
• Operating Temperature Range: -20°C to +70°C
• Operation Force: About 3-5N
• Operation Stroke: 1.05mm
• Body Material: Plastic
• Mech. & Electrical Life: 3,000,000 Cycles
• Length: 12mm
• Width: 12mm
• Height: 7.3mm
• Weight: 1gm
