₹76.70 Inc. GST
Features:
Frequency Range: 900/1800
Gain: 3 dBi
Antenna type: Rubber Antenna
Technical Specifications:
Frequency Range: 900/1800
Gain: 3dBi
VSWR: ≤ 1.5
Polarization: Vertical
Front to Back Ratio: ≥15 dB
Radiation Direction: Omni Directional
Impedance: 50 Ohm
Lightning Protection: DC Ground
Maximum Input Power: 50 W
Mechanical Specifications:
Connector SMA Male Movable RA or Customized
Radom Color: Black
Radom Material: ABS/PP
Environmental Friendly: ROHS Compliant
Operating Temperature (®C): -40°C ~ 85°C
29 in stock

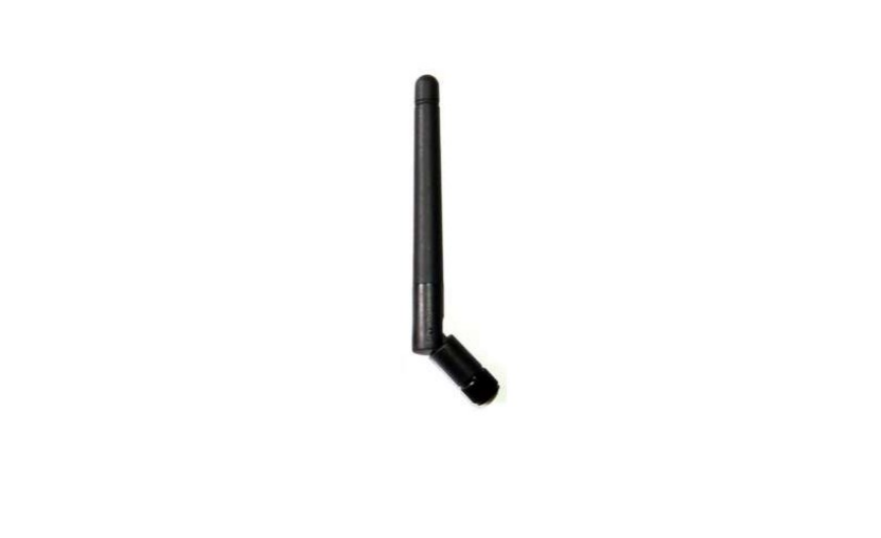

The Rubber Antenna is an electrically short antenna, which functions somewhat
like a base-loaded whip or monopole antenna. Electrically short antennas are
often used in portable equipment because a one-quarter wavelength element,
necessary for electrical resonance of a linear element over a ground-plane, is
often too long for convenient portable operation.
Resource: 3-dBi-GSM-Rubber-Duck-Antenna-with-SMA-MaleMovable
