Description
We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of signals and its super easy to use. It is a great general purpose 16 bit converter.

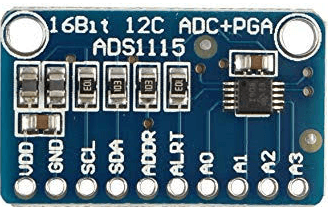

ADS1115 16-Bit ADC-4 Channel with Programmable Gain Amplifier
₹241.90 Inc. GST
Features:
- WIDE SUPPLY RANGE: 2.0V to 5.5V
- LOW CURRENT CONSUMPTION: Continuous Mode: Only 150µA Single-Shot Mode: Auto Shut-Down
- PROGRAMMABLE DATA RATE: 8SPS to 860SPS
- INTERNAL LOW-DRIFT VOLTAGE REFERENCE
- INTERNAL OSCILLATOR
- INTERNAL PGA
- I2C INTERFACE: Pin-Selectable Addresses
- FOUR SINGLE-ENDED OR TWO DIFFERENTIAL INPUTS
- PROGRAMMABLE COMPARATOR

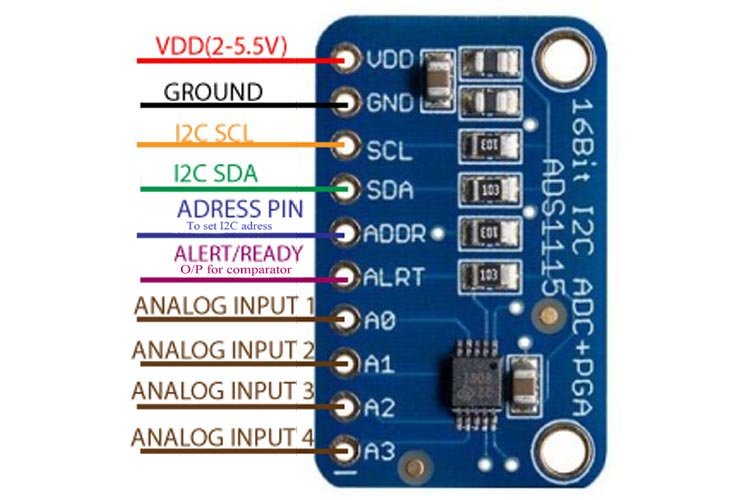

- This board/chip uses I2C 7-bit addresses between 0x48-0x4B, selectable with jumpers
3 in stock
Additional information
| Weight | 02 g |
|---|---|
| Dimensions | 028 × 012 × 05 mm |
