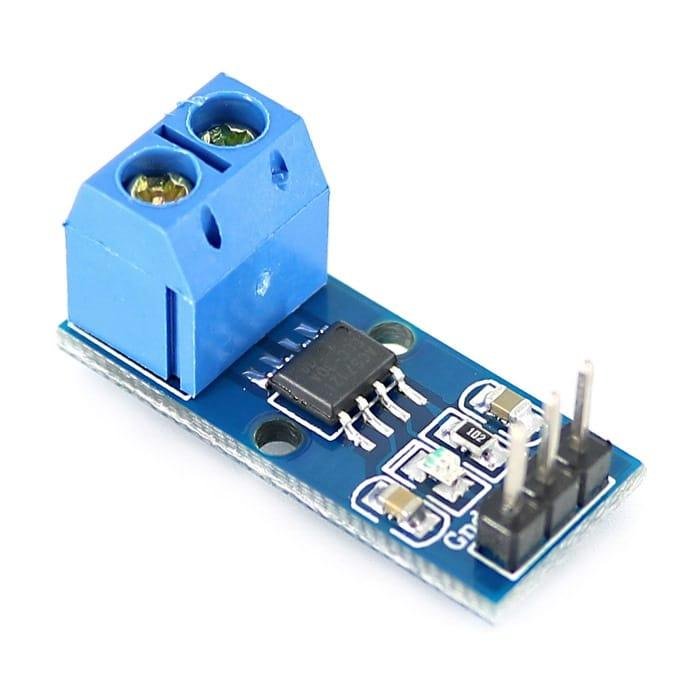

5A range Current Sensor Module ACS712

₹105.62 Inc. GST

  • 185 mV/A output sensitivity
  • 5.0 V, single-supply operation
  • Output voltage proportional to AC or DC currents
  • Factory-trimmed for accuracy
  • Extremely stable output offset voltage
  • Nearly zero magnetic hysteresis
  • Ratiometric output from the supply voltage
  • Low-noise analog signal path
  • Device bandwidth is set via the new FILTER pin
  • 5 µs output rise time in response to step input current
  • 80 kHz bandwidth
  • Total output error 1.5% at TA = 25°C
  • Small footprint, low-profile SOIC8 package
  • 1.2 mΩ internal conductor resistance
  • 2.1 kV RMS minimum isolation voltage from pins 1-4 to pins 5-8



1 in stock

SKU: R11B14S06 Categories: , ,

Description

Features:

  • 185 mV/A output sensitivity
  • 5.0 V, single-supply operation
  • Output voltage proportional to AC or DC currents
  • Factory-trimmed for accuracy
  • Extremely stable output offset voltage
  • Nearly zero magnetic hysteresis
  • Ratiometric output from the supply voltage
  • low-noise analog signal path
    Current Sensor – ACS712 -5 AMPS. ACS712 current sensor operates from 5V and outputs an analog voltage proportional to current measured on the sensing terminals. You can simply use a microcontroller ADC to read the values.

Additional information

Weight03 g
Dimensions031 × 014 × 013 mm
