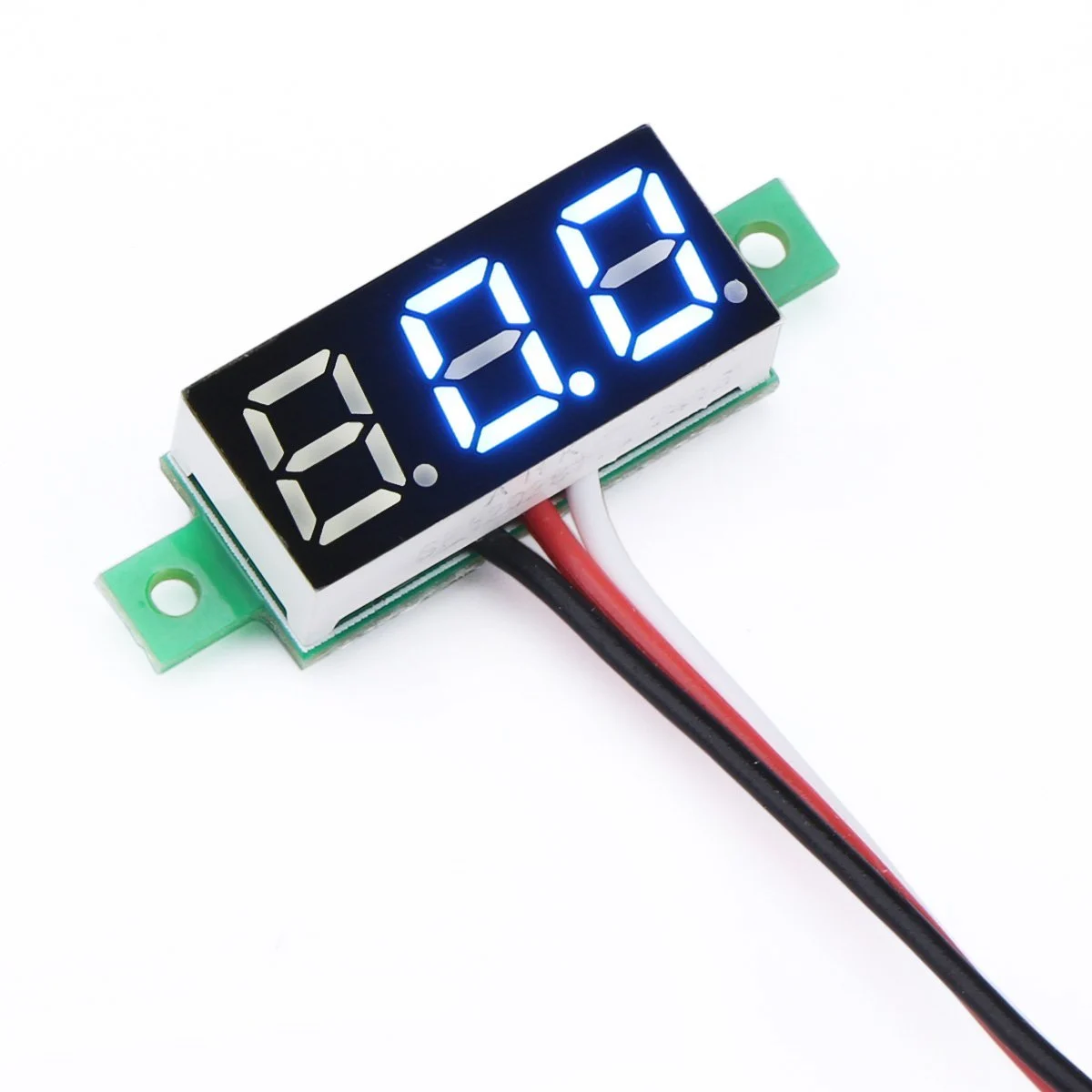

0.72 cm/0.28 Inch 0-100V Three Wire DC Voltmeter Blue

100.30 Inc. GST

  1. Measuring Range (V): 0 to 100 VDC
  2. It is a 3-wire display.
  3. LED Color: BLUE
  4. Current Consumption : < 20 mA.
  5. Accuracy: 0.1 V.
  6. Refresh Speed : Approx 200mS/time.
  7. Measure accurately up to  3.6 V

Out of stock

SKU: R11B08S02 Category:

Description

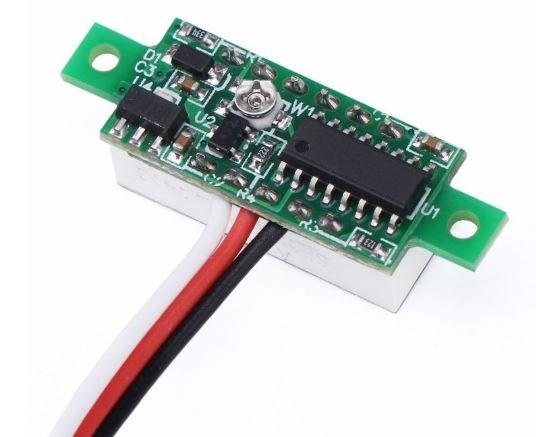

Connections :
Red Wire: Positive of the Power supply

Black Wire: Negative of the Power supply and also used as the negative of the measurement voltage source

Yellow/White/Blue: Positive of the measurement voltage source

Note:
2-power source (Red and Black) line with the highest input voltage cannot exceed 100V, otherwise, there is the risk of burnt.
Three-line voltage range 0-100V, but also can be used as second-line use in 40V voltage to within Technical parameters
The display weight and Dimensions may have ±2% error.

Features:
Very small and lightweight voltmeter module.
Very handy and easy to use.
Blue LED display.
Best operates in the working voltage range of 5V to 24V
100% Brand new and high quality.
No direct exposure to sunlight
product stability, high accuracy
Package Includes:
1 x 0.28 inch 0-100V Three Wire DC Voltmeter Blue
